Custom linear cross roller guides and needle roller guideways are often required when standard guideway dimensions, materials, hardness, or installation structures cannot meet the requirements of automation and high-precision equipment.
For non-standard machinery, the guideway must often match an existing machine structure, mounting space, stroke, load, and accuracy requirement. ZOTIK supports customized guideway solutions based on customer drawings, samples, and application conditions.
Our custom guideways can be adjusted in material, dimensions, mounting holes, heat treatment, cage structure, roller size, and surface hardness.
Custom Materials and Heat Treatment
Guide rail materials such as GCr12 and GCr15 bearing steel can be selected according to the application requirements.
For applications with special requirements, customized heat treatment processes are also available. After our special processing and heat treatment, the working surface hardness of the guideway can typically reach HRC 60 or higher.
Higher surface hardness helps improve wear resistance, rolling-contact durability, and long-term stability under repeated reciprocating motion.

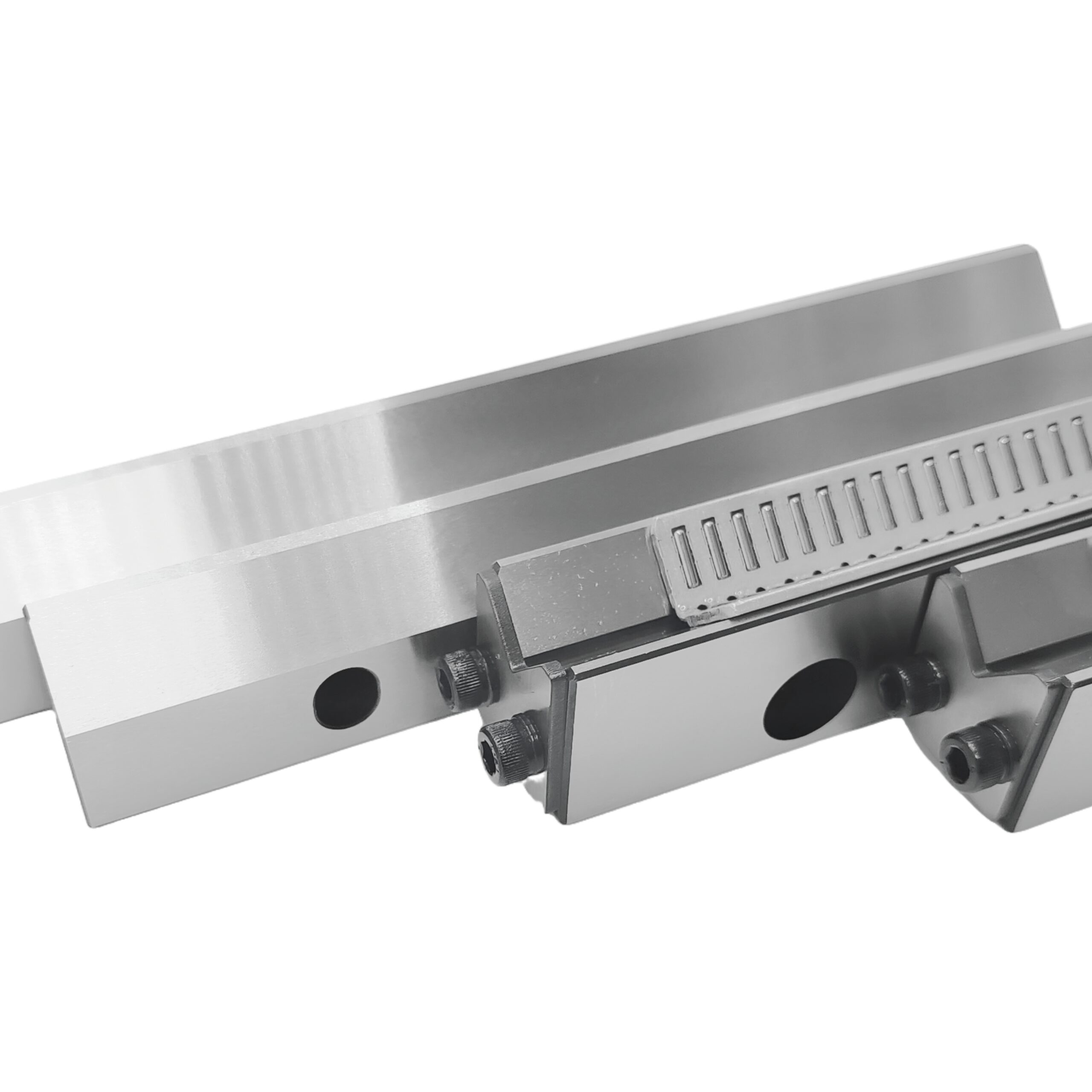

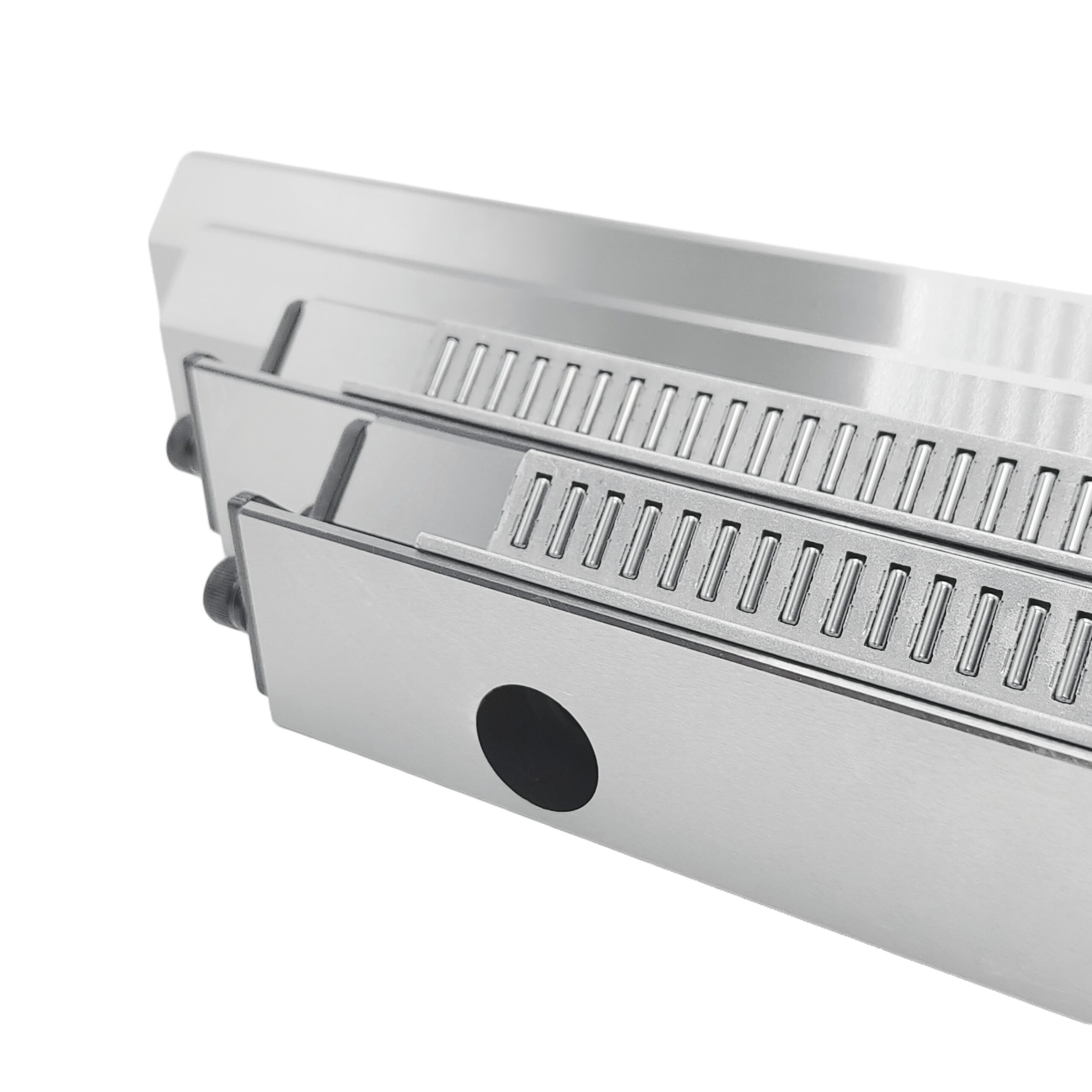

HW-Type Right-Angle Needle Roller Cage
The guideway uses an HW-type right-angle needle roller cage to support high-load and high-rigidity linear motion.
The needle rollers provide a larger effective contact area than ball-type rolling elements, making this structure suitable for applications requiring high load capacity, rigidity, and stable short-stroke motion.
The HW cage helps maintain roller spacing and alignment while allowing smooth movement between the precision guide surfaces.
Applications in Automation and Precision Equipment
Custom linear cross roller guides and needle roller guideways are suitable for:
- Semiconductor equipment
- Precision measuring instruments
- Optical stages
- Automation systems
- Machine tools
- Inspection equipment
- Precision positioning mechanisms
- Heavy-load short-stroke motion systems
For these applications, the guideway can be customized according to installation dimensions, load, stroke, hardness, roller size, and mounting requirements.
ustom Guideway Solutions
For new equipment and replacement projects, customers can provide drawings, samples, guideway dimensions, mounting hole positions, stroke, load, roller size, and required hardness.
Based on this information, ZOTIK can evaluate a suitable custom linear cross roller guide or needle roller guideway solution.
